Producing reliable power from 20 ekW to 300 0 ekW at 50/ 60Hz . O ur diesel generator sets are engineered to meet your standby and prime applications, and measure up to your power standards.
All are tested to maximum load before they leave any one of our ISO 9001 certified facilities. And because we believe power is more than quantity of kilowatts but quality of performance, we’ ve adopted in advance fuel system for improved fuel efficiency.
Performance Feature
Engine and alternator shall be mounted on a same frame steel skid.
Built-in damper for anti-vibration.
World most famous brand diesel engine.
World famous brand AC alternator.

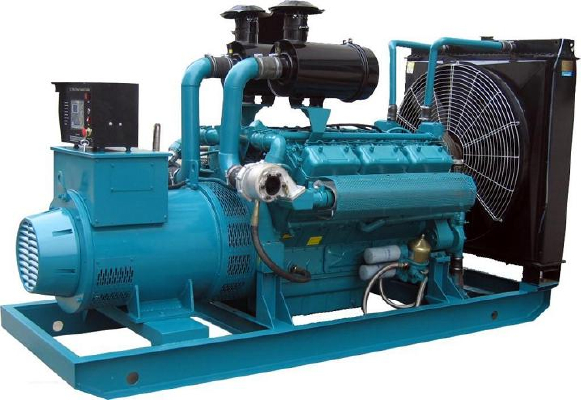

We are the manufacturer of ac three phase 150kva with cummins engine diesel generator !!!!
Detail specs of 150kva with cummins engine diesel generator as follows:
Technical data | |
Genset Model | GY-120GF |
Genset Output Power | 120KW/150KVA |
Rated Voltage | 380/220V |
Frequency | 50Hz |
Power Factor(COS) | 0.8(lagging) |
Dimension (L×W×H) (mm) | 2400*1200*1500 |
Net weight (kg) | 1200 |
Diesel Engine | |
Brand | DCEC Cummins |
Model | 6BTAA5.9-G2 |
Engine Structure | In line 6 cylinder, 4 stroke, turbocharged |
Rotating Speed | 1500r/min |
Engine Cooling Method | Radiator for ambient temp 40OC, belt driven cooling fan with cover |
Governor System | Precise electrical governor system |
Starting Method | 24V DC, with Silicon commutating charging motor |
Engine Filter System | Dry type air filter, fuel filter, oil filter |
Displacement(L) | 5.9 |
Compression Ratio | 18.51 |
Bore×Stroke(mm) | 102×120 |
100% load fuel consumption | 200g/kw.h |
Lube capacity(L) | 16 |
Alternator | |
Brand | Kaijieli(China-French joint venture Leory Somer technology) |
Model | TWGII184E |
Excite Type | Brushless ,Self-exciting, AVR automatic voltage regulating |
Connecting Type | 3 Phase and 4 Wires |
Steady Frequency Change | 05% |
No load voltage | ≥95%105% |
Steady voltage | ≤±1% |
Insulation degree | H degree |
Enclosure degree | IP23 |
The components of the genset | |
(1) Diesel engine; (2) Generator; (3) Control panel | |
The Accessories | |
Wave pipe , curved pipe , muffler , accumulator and the connecting lines , shock-absorbing spacer , and data . | |
Control Panel | |
The control panel is Ordinary integrative type control panel, with the display of voltage,current, frequency, water temperature, oil pressure. | |
Overall description : 1.Cummins Engine and Stamford Alternator 2.Water cooled radiator, the fans driven by belt, with safety shield. 3.24 V Battery charging Alternator 4.Alternator:Single bearing Alternator,IP22 Grading Protection, H Insulation degree 5.Shock absorber 6.Dry air filter,Fuel filter,Oil filter 7.Power output circuit breaker 8.Smartgen control panel(LCD display) 9.24V battery and battery connection cables 10.Exhaust pipe,Corrugated shock tube,flange,Muffler set 11.Maintenance manuals 12.Lubrication System |
