OEM approved 500kw water cooled ktaa19-g6a diesel genset powered bycummins engine

OEM approved 500kw water cooled ktaa19-g6a diesel genset powered bycummins engine

  • Min.Order Quantity: 1 Set
  • Supply Ability: 5000 Sets per Month
  • Port: CHINA PORT
  • Payment Terms: L/C,T/T,Western Union
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:2000-04-20
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Size:  12
  • Place of Origin:  CHINA
  • Brand Name:  starlight
  • Model Number:  HGM/ HGGM
  • Weight: 8000.000 kg

Specifications

1)water cooled power diesel generator
2)Low fuel consumption
3)8-24 hours base fuel tank
4)High temperature protection

Prime
(kW/kVA)
Standby (Kw/kVA) Genset current(A) Engine power
(kW)
Bore/stroke (mm) Cubic capacity
(L)
No. of cylinder Coolant capacity
(L)
Lub.oil capatity (L) Fuel Consump.
(L/hr)
Net Weight (kg) Fuel Tank Capacity (L)
20/25 22/27.5 40 26.5 95/115 3.26 4 17 9 6.2 650 50
20/25 22/27.5 40 26.5 95/115 3.26 4 17 9 6.2 650 50
24/30 30/37.5 54 30.1 100/115 3.26 4 19 9 7.5 700 60
24/30 30/37.5 54 30.1 100/115 3.26 4 19 9 7.5 700 60
30/37.5 36/45 65 33 102/115 3.26 4 19 9 9.3 700 75
30/37.5 36/45 65 33 102/115 3.26 4 19 9 9.3 700 75
30/37.5 40/50 72 42 100/115 8.6 4 21 25.2 9 750 75
30/37.5 40/50 72 42 100/115 8.6 4 21 25.2 9 750 75
40/50 50/62.5 90 53 110/115 8.6 4 21 25.2 12 1000 96
50/62.5 55/68.5 99 56 105/125 8.6 4 21 25.2 14 1000 112
50/62.5 55/68.5 99 56 105/125 8.6 4 21 25.2 14 1000 112
75/93.7 80/100 144 84 105/125 8.6 6 30 25.2 20 1100 160
75/93.7 80/100 144 84 105/125 8.6 6 30 25.2 20 1100 160
100/125 110/137.5 198 110 105/130 8.6 6 30 25.2 26 1200 207
100/125 110/137.5 198 100 105/130 8.6 6 30 25.2 26 1200 207
100/125 110/137.5 198 110 105/130 8.6 6 30 25.2 26 1200 207
112/140 120/150 216 110 105/135 12.88 6 30 28.7 30 1700 240
120/150 132/165 238 110 105/135 12.88 6 35 28.7 32.5 1700 260
120/150 132/165 238 132 105/135 12.88 6 35 28.7 32.5 1700 260
140/175 150/187.5 270 155 113/135 12.88 6 35 28.7 38 1700 304

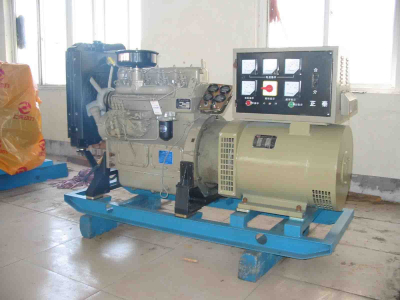

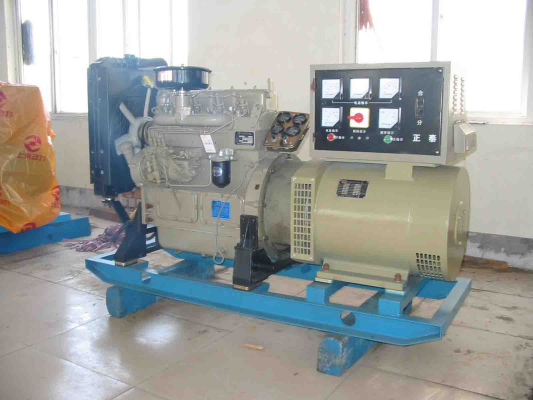

CUMMINS POWER water cooled Diesel generator Made in ShangHai China

Standard Features

High efficient water cooled diesel engine

Radiator with cap and drain point.

Brushless alternators (Class H, with AVR.)

Fully guarded engine driven fan

Heavy duty rubber anti-vibration mountings

Circuit Breaker - 3 pole (MCCB)

12/24V starter batteries and connecting cables

Base fuel tank for 12 hours running at 100% load

Separate engine-drive battery charging alternator

Oil filter - Diesel filter - Air filter

Industrial silencer for open type generator sets

Fully welded steel baseframe with lifting and

Residential silencer for open type generator sets

Fork-lifting facilities.

Auto start / Digital Tide Easycon Control Panel

Sound proof & Weather protective enclosures for

Wiring with IEC standard

Silent type generator sets.

Factory Test Certificate

Operation & Maintenance Manual & Diagrams

Worldwide Product / Technical Support



Engine General Performance

Alternator data

Manufacture

DCEC Cummins

Brand

Leroysomer

Engine Model

4BT3.9-G2

Model

LSA42.3S5

Engine Type

4 cycle, in-line, 4-cylinder

AVR Model

R250

Engine Speed

1800 r.p.m

Coupling / Bearing

Direct / Single Bearing

Base Output Power

50kw

4BT3.9-G2 Phase

3 Phase

Standby Power

36kw

Power Factor

0.8

Governor Type

Electronicl

Winding pitch - Code

2/3 - (N° 6)

Air Intake Way

Turbocharged & After cooled

Drip Proof

IP 23

Displacement

3.9L

Excitation

Shunt

Cylinder Bore * Stroke

102mm × 120mm

NO. of Cylinders

4

Compression Ratio

16.5:1



  • Size:  12
  • Place of Origin:  CHINA
  • Brand Name:  starlight
  • Model Number:  HGM/ HGGM
  • Weight: 8000.000 kg
